S5M-260 STD Timing Belt
Compact synchronous transmission belt with 5 mm pitch, molded tooth profile, and HUANLING factory supply support for sample checks and bulk orders.
Product Snapshot
Common Uses
Suitable for compact mechanical drives where synchronized movement, stable positioning, and low-slip transmission are required. Final selection should be checked against pulley profile, installation tension, working load, and operating environment.

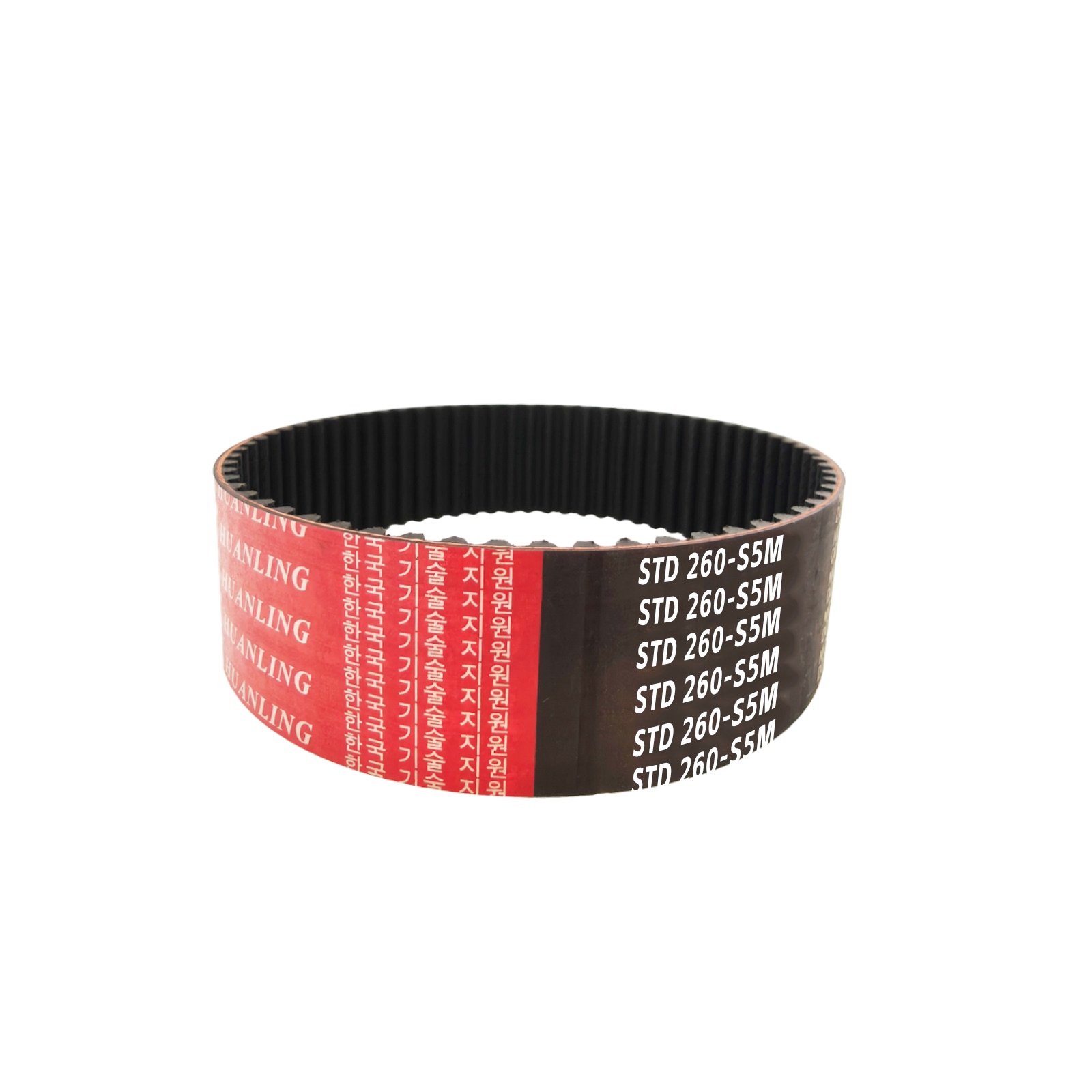

Product Images

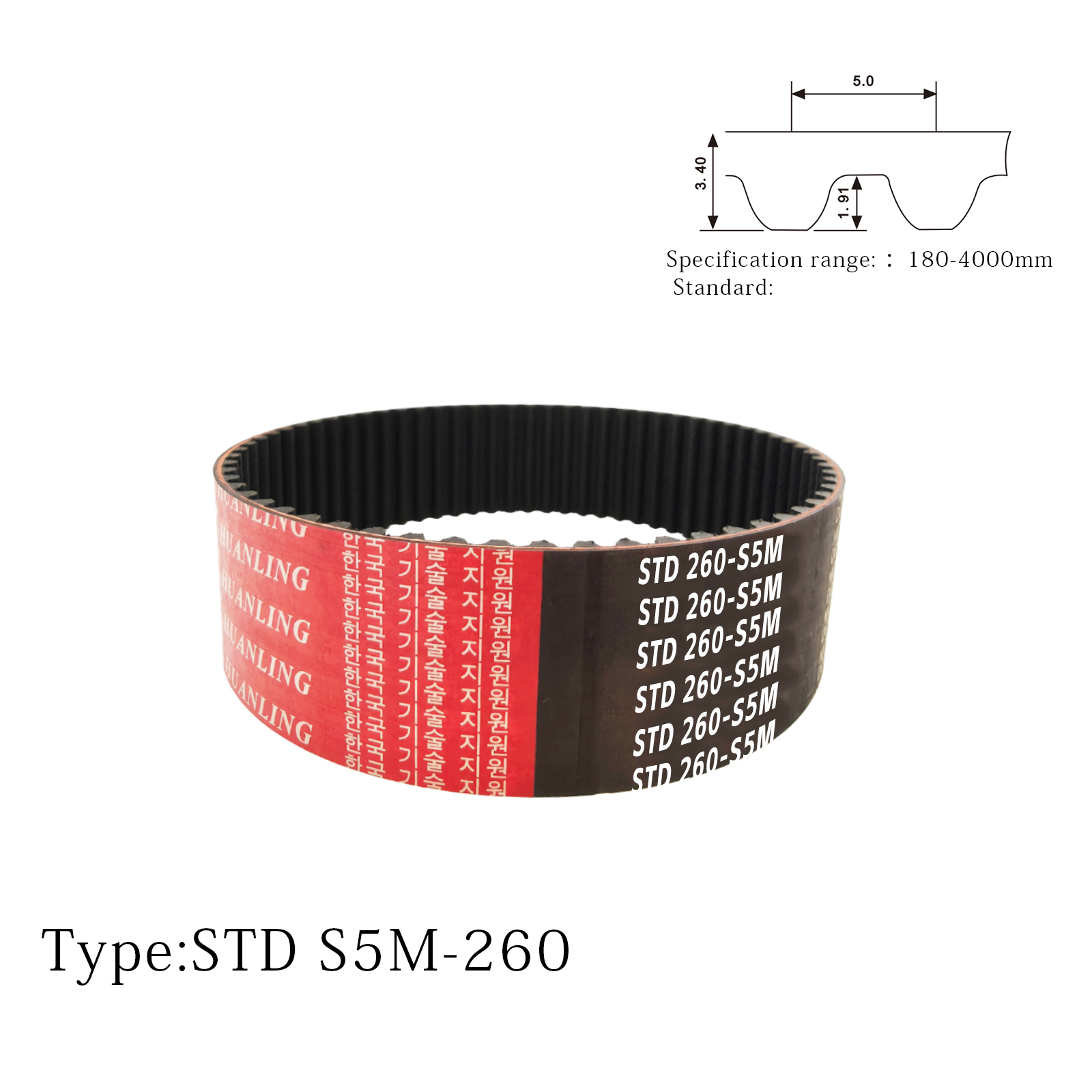

Photos and dimension references for checking the printed model, tooth profile, and S5M geometry.

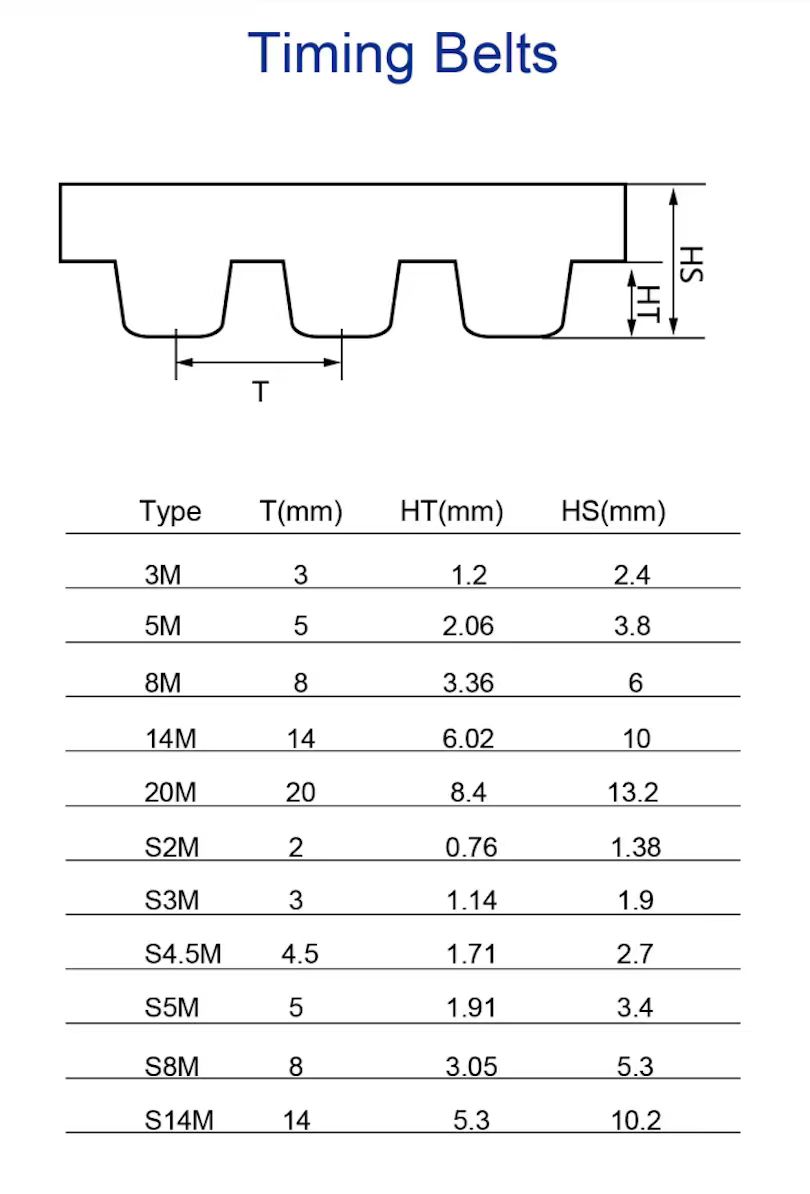

Tooth Geometry Reference
The S5M profile uses a 5 mm pitch. The provided timing belt profile chart lists S5M reference values as HT 1.91 mm and HS 3.4 mm. Confirm pulley groove compatibility before installation.

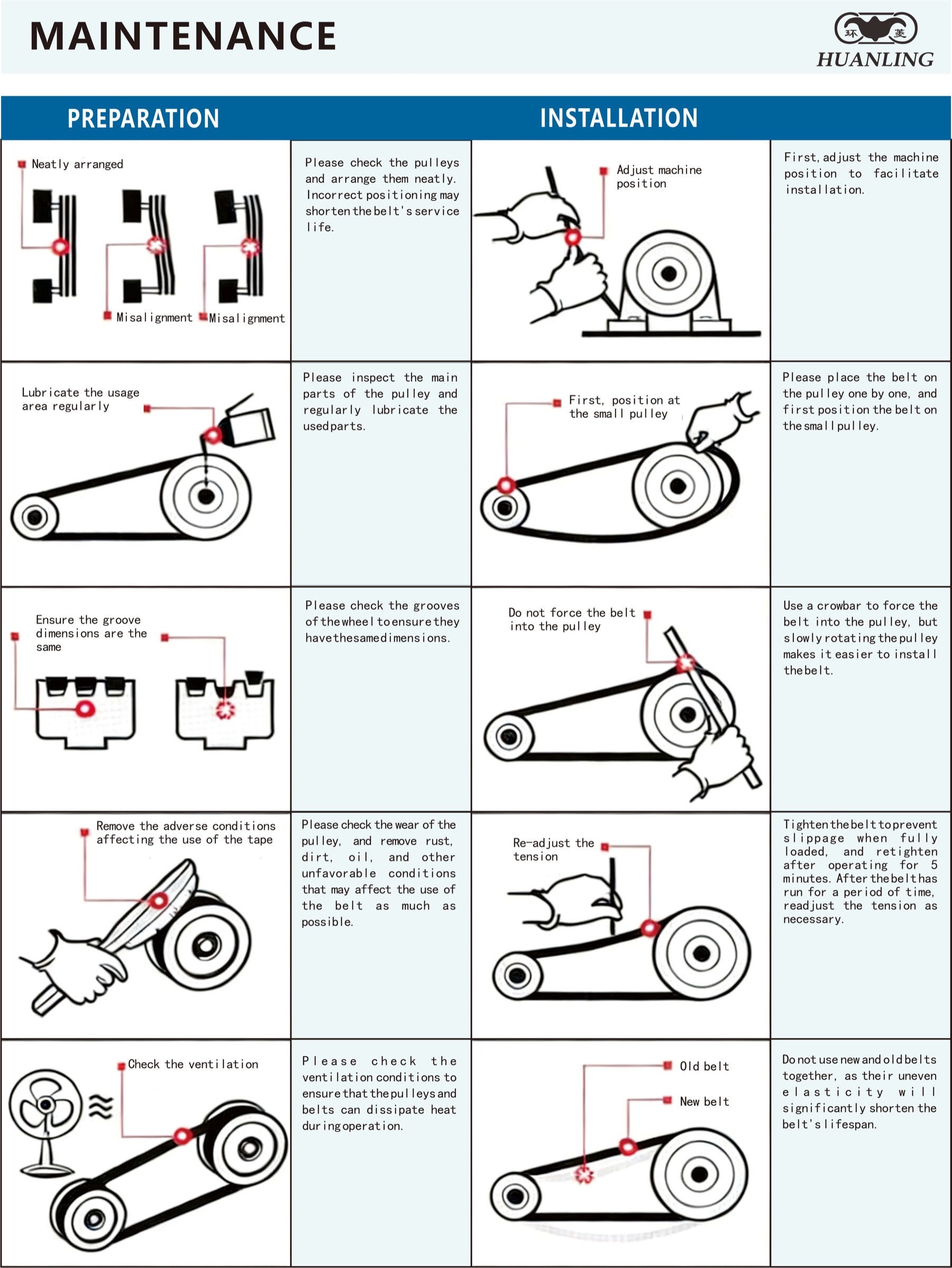

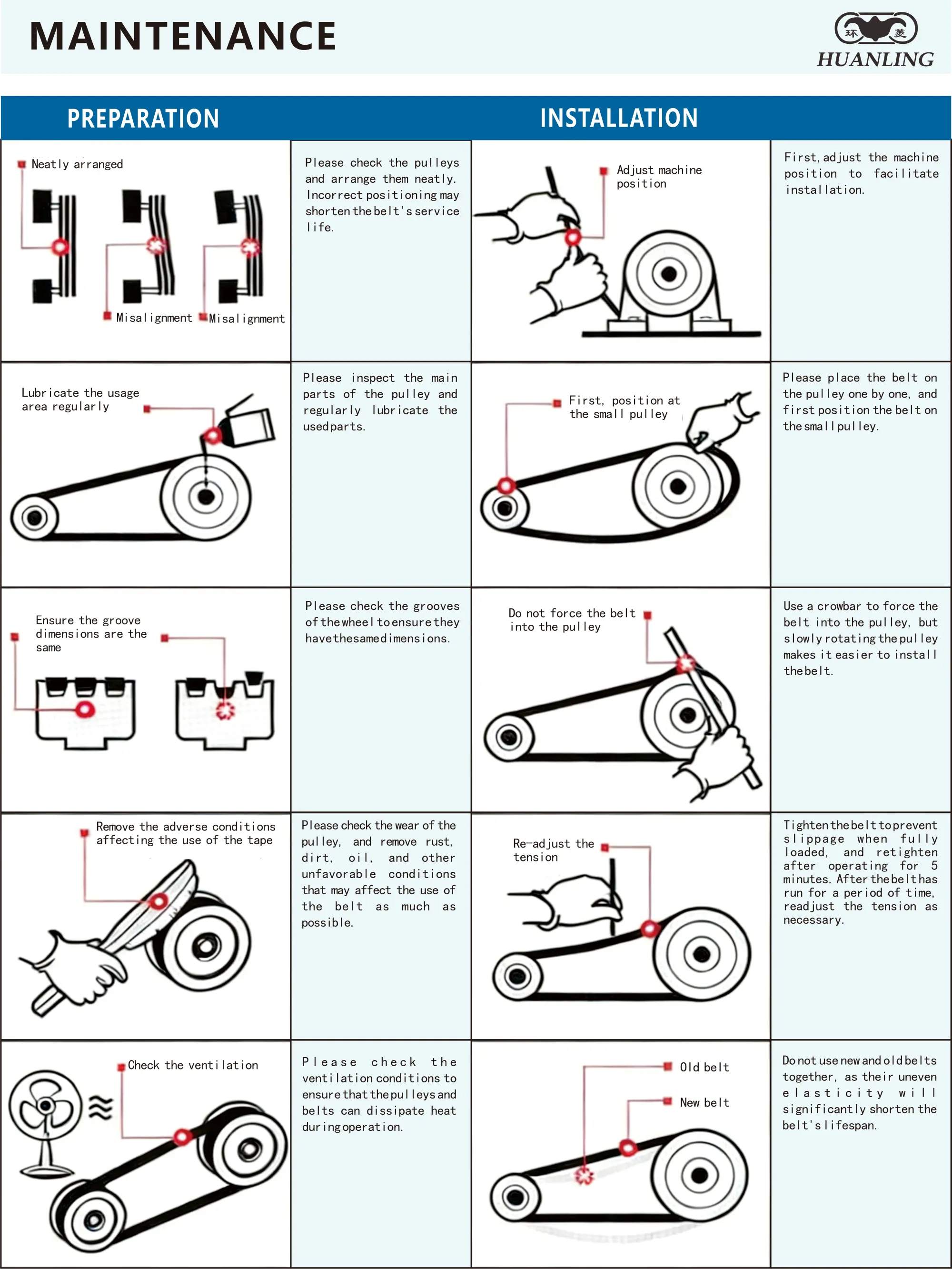

Installation & Maintenance
Use the preparation and installation reference below to avoid misalignment, forced mounting, excess tension, and mixed old/new belt use.
Need a quote for S5M-260 STD Timing Belt?
Send the model, width, quantity, and destination details. Our team can confirm stock, packing, and export quotation.
